Atari 800 PSU

Postby Beaglz on Sat Mar 11, 2017 2:34 pm

Just received my early 80's Atari 800 and on the hunt of 9V AV 3.4A power supply - any ideas for local supply? Seems most available are 1amp (which I have a few already) but 'need more power' to drive the machine. Have searched Jaycar with no luck. Found one online in the UK but then will need adapter socket but nothing locally so far.
Cheers,
Beaglz.
Beaglz

Posts: 30
Joined: Sat May 02, 2015 3:02 pm

Re: Atari 800 PSU

Postby kevman3d on Sat Mar 11, 2017 10:49 pm

From what I know, the pins are all +5V and Gnd wires (no 9V signals anyway)

http://atariage.com/forums/topic/184792-800xl-power-supply-connector/

It might be easy enough to build something with a 7 pin plug and an alternate power source if you can't find an original... I'm sure someone here may be able to shed some knowledge on this...
"kevman3d" on trademe.
Blog
Youtube
kevman3d

Posts: 392
Joined: Sun Jul 22, 2012 2:54 pm

Re: Atari 800 PSU

Postby Beaglz on Sun Mar 12, 2017 12:48 pm

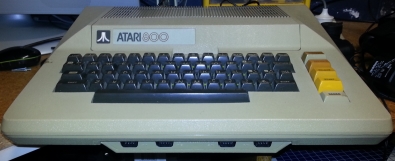

Yeah that is correct on the Atari 800XL but I am talking about the Atari 800:

[img]
[/img]

Looks like I might get away with a 2Amp PSU which are a little easier to come by. Have just managed to pickup a Atari 800XL system overnight as well for about $100 although will cost about the same in postage but that is part of the fun of collecting these old system.

Cheers,
Beaglz
Attachments
Atari 800.jpg
Atari 800.jpg (54.04 KiB) Viewed 684 times
Beaglz

Posts: 30
Joined: Sat May 02, 2015 3:02 pm

Re: Atari 800 PSU

Postby tezza on Sat Mar 25, 2017 9:58 pm

Very nice.

The original Atari 800 is a model I'm yet to get my hands on!
Tez (Terry Stewart) (Administrator)
Collection: http://www.classic-computers.org.nz/col ... /index.htm
Projects and Articles: http://www.classic-computers.org.nz/blog/index.htm
Twitter: @classiccomputNZ | YouTube: Terry Stewart
Trade Me: tezza5
tezza
Site Admin

Posts: 2291
Joined: Thu Jan 01, 1970 12:00 pm
Location: Palmerston North, New Zealand

Re: Atari 800 PSU

Postby Beaglz on Sun Mar 26, 2017 9:02 am

Managed to pick it up off Ebay.co.uk for 50 pound plus $100 postage on YouShop. Had some damage to the outer case which I have repaired with plastic glue.

Picked up a new 9v AV 2amp power supply locally which is working fine. Couple the unit with the SIO2SD and working like a charm.

Just waiting on the 800 XL unit to arrive which should be early next week.
Beaglz

Posts: 30
Joined: Sat May 02, 2015 3:02 pm

Re: Atari 800 PSU

Postby kevman3d on Sun Mar 26, 2017 5:05 pm

Wow. Nice piece of kit. I've wanted to get a 400 - but they tend to be hard (or expensive) to find. :)
"kevman3d" on trademe.
Blog
Youtube
kevman3d

Posts: 392
Joined: Sun Jul 22, 2012 2:54 pm
