Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:16 pm

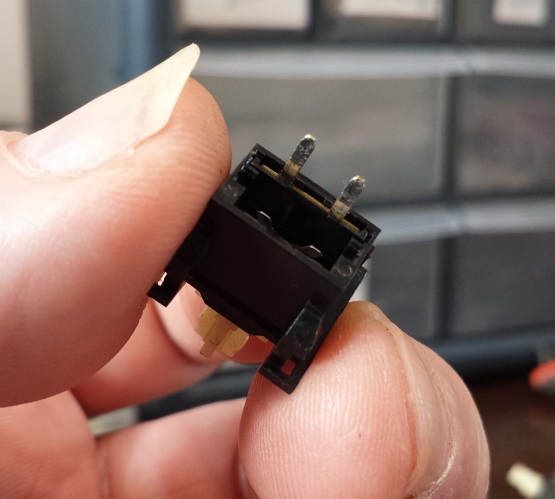

the switch should look like the pic below now..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:18 pm

now gently pull out the inner switch from other side the whole thing should come out..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:20 pm

noe gently take the metal switch clip off dont worry if you have to bend a little to get off we will have to re-bend to make tighter as that is part of problem..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:23 pm

ok so testing switch gave open switch and pressing center button did nothing o used some contact cleaner to clean any oxidization in side the 2 metal plates..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:25 pm

ok so after cleaning the switch seem fine now..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:32 pm

ok so now to re-assemble the switch.. this is not hard but can be a little tricky..

put the white plastic plunger in the top of the switch case (it will only go in one way)
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:33 pm

slide in in the right set of guides and slide in right down..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:34 pm

plunger all the way down..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:36 pm

now look close you can see the 2nd set of slots for the switch put switch the right way around
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:37 pm

the metal part that pushes the switch closed should be against the white plunger..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:40 pm

pus the switch down and make sure its right down.. don't be to rough,, now with the switch in place use your jewelers screw drive to bend the metal pusher legs for the switch out a little this makes the plunger press harder on the switch.
Attachments
Last edited by LS120 on Mon Apr 01, 2019 4:46 pm, edited 1 time in total.
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:41 pm

next place the spring on the little tit inside in the plunger.. holding it all upright..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:42 pm

now gently position the base in the switch and make sure you have the switch legs and spring in the right places..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:44 pm

now gently press the 2 parts together.. and Click its closed..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

by LS120 » Mon Apr 01, 2019 4:48 pm

now test the switch and it should work as new.. i did test the switch when re assembling but you only need to do it before the spring and bottom clips on..
Attachments
LS120

Posts: 285
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington
