Re: Bondwell 14 and 16

Postby LS120 on Sat Mar 30, 2019 7:41 pm

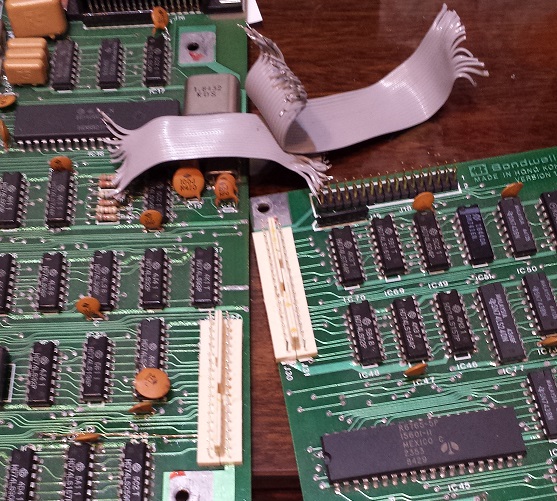

the ugley soldered ribbon cables on the Bondwell-16 gone.. just need to make the leads now.. alot better idea i think. now i can unplug the drives with out taking the controller off as well..

now i have to check all the non working keys on the Bondwell-14 to see what i can do to selvage them.. fingers crossed.. and to make the new fdd/hdd cables.
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby tezza on Sun Mar 31, 2019 6:31 pm

You are getting there... :)
Tez (Terry Stewart) (Administrator)
Collection: https://www.classic-computers.org.nz/co ... /index.htm
Projects and Articles: https://www.classic-computers.org.nz/blog/index.htm
Twitter: @classiccomputNZ | YouTube: Terry Stewart
Trade Me: tezza5
tezza
Site Admin

Posts: 2358
Joined: Thu Jan 01, 1970 12:00 pm
Location: Palmerston North, New Zealand

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 7:53 am

so just testing the waters as i have 2 x kaypro-10 units to test and wonder if there is any inturest and whst people think they are worth?

im not after gold but a resionable price as ill check and recap psu an fdd's

thanks
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 3:53 pm

well a wet day and i have thins to fix.. so made the cables for the BW-16..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 3:54 pm

it does look so much better..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 3:59 pm

after making the cables i decided to do a tear-down, test, fix and re-assemble ...

this is a picture of 2 keys so you cam see how they are..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:01 pm

the keys are no molded shut so to open the keys i use a small jewlers screw driver to pry out the clips on 1 side at a time..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:05 pm

with a thumb nail holding it open i do the other side.. take your time so you dont break the tabs as they hold the whole thing closed.
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:06 pm

bothe sides open now.. slowly wiggle the top off.. becareful as there is a spring inside
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:07 pm

gently pull apart
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:08 pm

take the base top and spring and layout so you dont lose..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:10 pm

remove the white plastic plunger and clean it then clean the top it was in..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:12 pm

ok now the bottom part where the pins are you will see the red wax/glue you need to take it out just take your time it comes out easy..
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:13 pm

sorry last pic no too good.. this is how it should look after cleaned out. you can see the red wax on table.
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington

Re: Bondwell 14 and 16

Postby LS120 on Mon Apr 01, 2019 4:15 pm

now you need to gently wiggle the pins side to side while pushing down on the to make them go down inside the switch.
Attachments
LS120

Posts: 287
Joined: Fri Jul 22, 2016 9:19 pm
Location: Wellington
